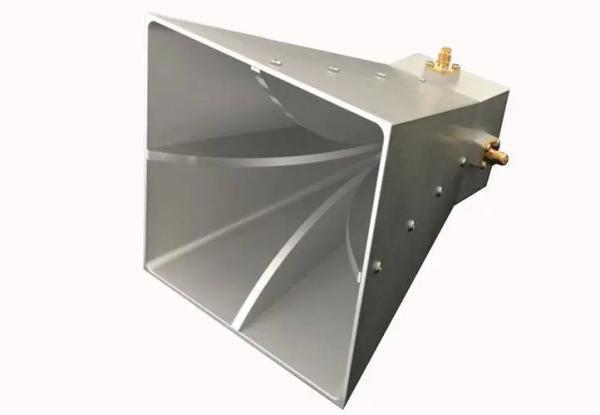

1.7GHz-6GHz Dual Polarization Horn Antenna Asymmetrical

Brand Name : Famous

Model Number : Horn Antenna

Certification : CE，ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T ， L/C

Packaging Details : Standard export packaging/customizable packaging

Name : Asymmetrical Horn Antenna

Material : aluminum (integrated processing)

Frequency : 1.7-6GHz

Standing wave : ≤2

Cross-polarization isolation : ≥25dB

Interface : SMA-K

Maximum power : 50W

Size : 135mm×112mm×112mm

Contact Now

Port 1:

FrequencyMHz Gain value E-plane beamwidth H-plane beamwidth Front to rear ratio dB
1700 6.98 76.4 84.2 11.9
2000 8.15 68.2 67.3 13.3
2100 8.31 66.8 62.7 14.1
2500 9.24 65.8 56.9 18.5
2700 9.48 62.2 52.7 19.1
3000 10.54 57.1 45.6 21.3
3500 11.50 50.5 37.2 18.2
4000 10.22 52.8 33.7 17.4
4500 11.10 48.2 36.9 20.4
5000 11.52 48.7 35.3 21.3
5500 12.42 39.8 31.7 19.4
5800 12.60 38.8 36.3 19.2
6000 13.09 37.3 34.2 21.0

Port 2:

FrequencyMHz Gain value E-plane beamwidth H-plane beamwidth Front to rear ratio dB
1700 6.93 76.5 84.3 11.9
2000 8.20 68.0 67.2 13.3
2100 8.34 66.7 62.7 14.1
2500 9.28 65.6 56.8 18.6
2700 9.48 62.3 52.8 19.1
3000 10.50 57.0 45.6 18.0
3500 11.5 50.6 37.3 18.1
4000 10.2 53.1 33.9 17.4
4500 11.1 48.7 37.3 20.0
5000 11.5 49.3 35.8 20.5
5500 12.4 40.1 31.9 19.5
5800 12.7 38.1 35.2 19.3
6000 13.2 36.7 33.6 21.0

Structural dimensions:

1.7GHz-6GHz Dual Polarization Horn Antenna Asymmetrical
